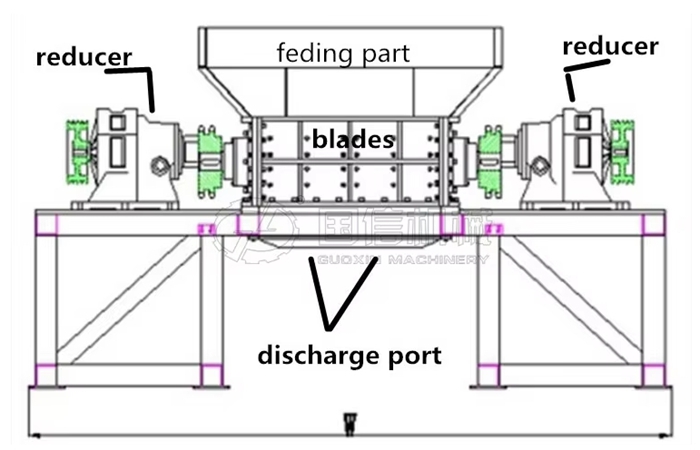

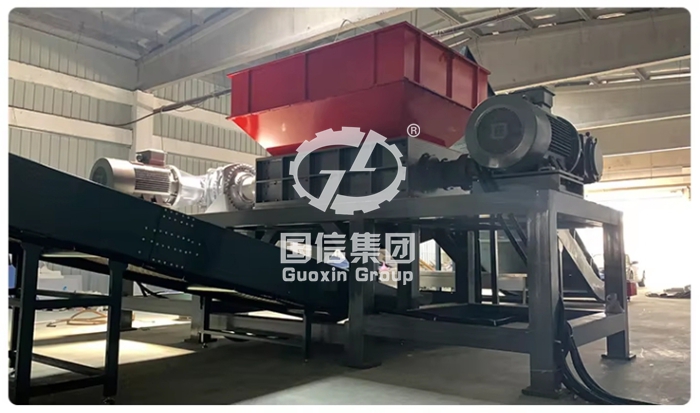

Waste cloth shredding machine is mainly composed of shredding blade group, bearing box, box support, feeding system, power system, electrical control system. It is mainly used for tearing thin metal with certain strength to increase its packing density for easy transportation and recycling. Tear objects such as metal buckets, refrigerators, cars, scrap steel, steel furniture and so on.

Working principle

Material through the feeding system into the inside of the box, box bearing shredding blade, material after shredding blade tearing, extrusion, shearing and other comprehensive effects, shredding into small pieces of material, discharged from the lower box.

Guoxin shredding machine transmission parts adopt coupling link, reduce vibration, protect the spindle and reducer, no loss of force.

Guoxin shredding machine reducer adopts hard tooth surface ZSY series, the reducer adopts steel plate welding, the gear is made of low carbon alloy steel with high strength by carbon quenching, high hardness of tooth surface, small size, light weight and high bearing capacity.

Product features

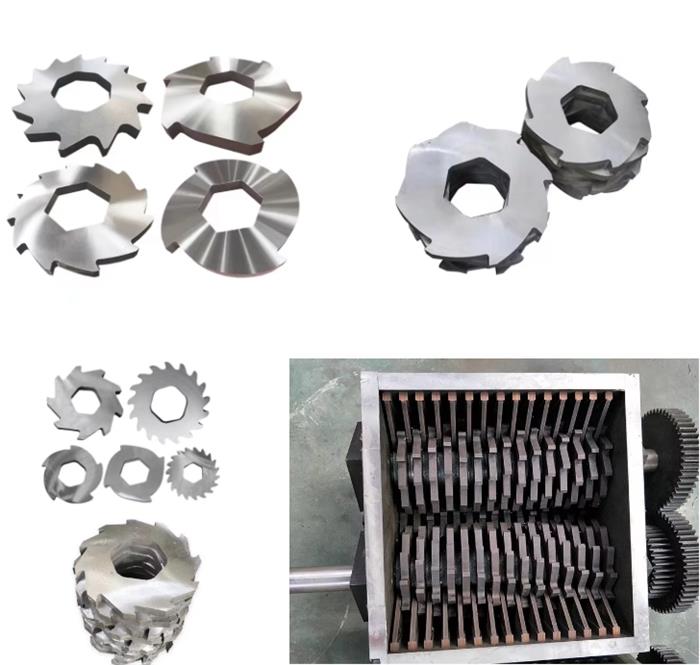

1,Heavy moving knife, high crushing efficiency, cutting tools are made of alloy steel casting, strong long service life.

2,The frame plate thickness, can resist high torque, very strong.

3,Using microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control function.

4,The equipment has low speed, large torque, low noise, dust can meet the characteristics of environmental protection standards.

5,Easy to adjust, low maintenance cost, economic and durable.

6,The thickness of the tool and the number of claws can be replaced according to different materials.

 We have established business factories in more than 10 countries and regions around the world, and our Waste cloth shredder machine has been widely praised by customers for its high performance. Guoxin has been involved in the waste sorting  and processing industry for more than 20 years, and has established a well-trained, skilled, and dedicated R&D team to provide customers with stable and energy-saving Waste cloth shredding machine. No matter your application is industrial waste, solid waste, Landfill waste, etc., we can provide you with the most suitable solution for Waste cloth shredder equipment,Waste cloth crusher machine including installation, adjustment and maintenance, making us the perfect partner.
