Trommel screen machine
Release time：26-03-27
Trommel screen is a device used for garbage sorting. It mainly screens the garbage through a rotating drum screen to separate materials of different particle sizes. The drum screen is widely used in the preliminary sorting of urban domestic garbage, construction waste, industrial waste, etc. It can efficiently classify materials by size, thus facilitating subsequent further processing and recycling.
Main components

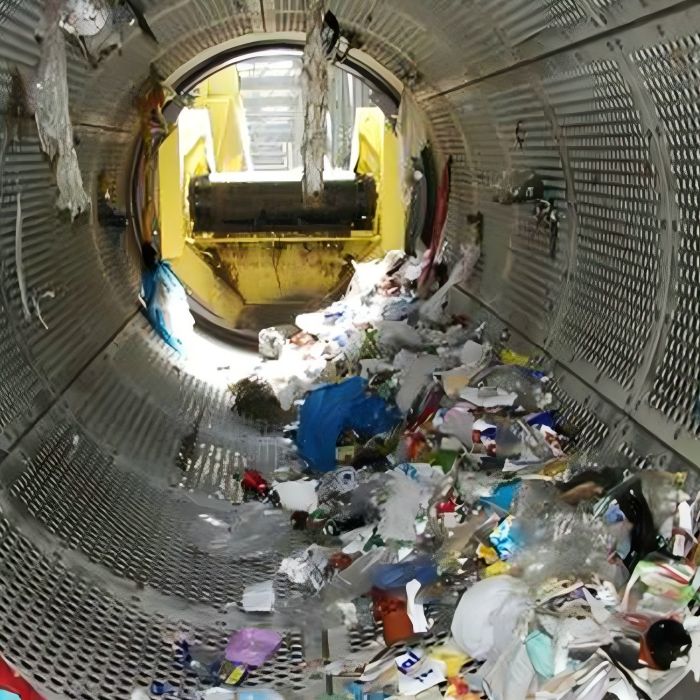

1. Drum screen drum: The core part of the drum screen, usually made of metal or wear-resistant material, has multiple screen holes. The aperture of the screen drum can be customized according to the different particle sizes of the materials.
2. Drive device: The drum screen is usually driven by an electric motor, and the screen drum is rotated through a transmission system such as gears and chains. The power and speed of the drive unit will affect the screening effect.
3. Feeding system: The garbage enters the drum screen through a conveyor belt, hopper, etc. The design of the feeding system ensures that the garbage enters the drum screen evenly and does not clog the screen.
4. Discharge port: After screening, the garbage will be discharged from different discharge ports. Usually, the discharge port is divided into multiple areas for collecting materials of different particle sizes, such as coarse materials, fine particles, etc.
5. Screen: The screen drum is equipped with a screen, and the aperture of the screen can be adjusted as needed. The screen is responsible for separating the materials according to the particle size.
6. Support device: The drum screen is generally installed through a support shaft and a bracket to ensure its stable operation.
Garbage sorting drum screen is mainly used in the following fields:
1. Urban domestic waste treatment: In the process of domestic waste classification, the drum screen can be used to separate materials of different particle sizes, such as separating large pieces of garbage from fine materials, for subsequent recycling and disposal.
2. Construction waste recycling: Construction waste usually contains larger materials (such as bricks, concrete, wood, etc.). The drum screen can effectively separate these large materials from fine particles (such as sand, dust, etc.) for easy recycling and reuse.
3. Industrial waste treatment: In industrial waste treatment, the drum screen can be used to separate large and fine particles in the waste, helping to improve the recovery rate and resource utilization efficiency.
4. Mineral, sand and gravel screening: The drum screen is not limited to garbage treatment, but is also widely used in the screening process of minerals, sand and gravel, etc., for separating different types of ores or sand according to particle size.
5. Plastic and metal recycling: The drum screen can be used in the recycling industry to separate recyclable plastics, metals, etc. from non-recyclable materials through sorting and screening to improve the recovery rate.
Advantages of drum screen
1. Efficient sorting: The drum screen can efficiently separate materials of different particle sizes, which is suitable for large-scale garbage treatment and has a significant sorting effect.
2. Simple operation: The operation of the drum screen is relatively simple, and it can complete the sorting of garbage in a short time, and does not require a complex control system.
3. Strong adaptability: The drum screen can handle various types of garbage, including domestic garbage, construction garbage, industrial waste, etc., with strong adaptability and high flexibility.
4. Reduce labor costs: Through mechanized sorting, the workload of manual sorting is reduced, labor costs are saved, and inaccuracies in manual operation are avoided.
5. Reduce the difficulty of subsequent processing: Through preliminary screening, large pieces of materials and small particles in the garbage are separated, which provides convenience for subsequent recycling, crushing, incineration or composting.
6. Strong durability: The drum screen is usually made of high-strength and wear-resistant materials, has a long service life, and is suitable for long-term high-intensity work.
Summary
The garbage sorting drum screen is an efficient garbage treatment equipment, which is suitable for separating garbage of different particle sizes and improving recycling efficiency and resource utilization. Through the working principle of its rotating screen, it can effectively separate large pieces of garbage and small particles of garbage, providing convenience for subsequent processing links. Drum screens are widely used in the fields of domestic waste, construction waste, industrial waste, etc., with strong adaptability and high efficiency. However, in the treatment of wet waste or waste containing more sticky substances, the effect of drum screens may be limited and needs to be adjusted according to specific circumstances or used in conjunction with other equipment.
